Circular Knives
Circular knives for shear cutting and perforation
D2, ASP 2023, carbide
Materials
Ø 20–500 mm
Sizes to a drawing or a sample
Product Range
Upper Knives, Shear Cutting
For paper, pulp, board and film.
Diameter: 20–350 mm
Materials: ASP 2023, ASP 2053, CPM 10V
Lower Knives, Shear Cutting
Usually carbide. The upper knife is powder steel.
Mounting: Eccentric/axial
Materials: Carbide/powder steel
Feature: Two-part versions
Multi Knife Blocks
For narrow slit widths. Plain bore for air shafts or set screw mounting for solid shafts.
Size: Up to Ø 500 mm
Groove pitch: Down to 5 mm (±0.01 mm)
Precision: Runout 0.02 mm
Knife Holders
Hardened tool steel.
Mounting: Screw/eccentric
Core Cutting Knives
Cutting against a shaft or in air.
Materials: D2, HSS, ASP 2023, ASP 2053

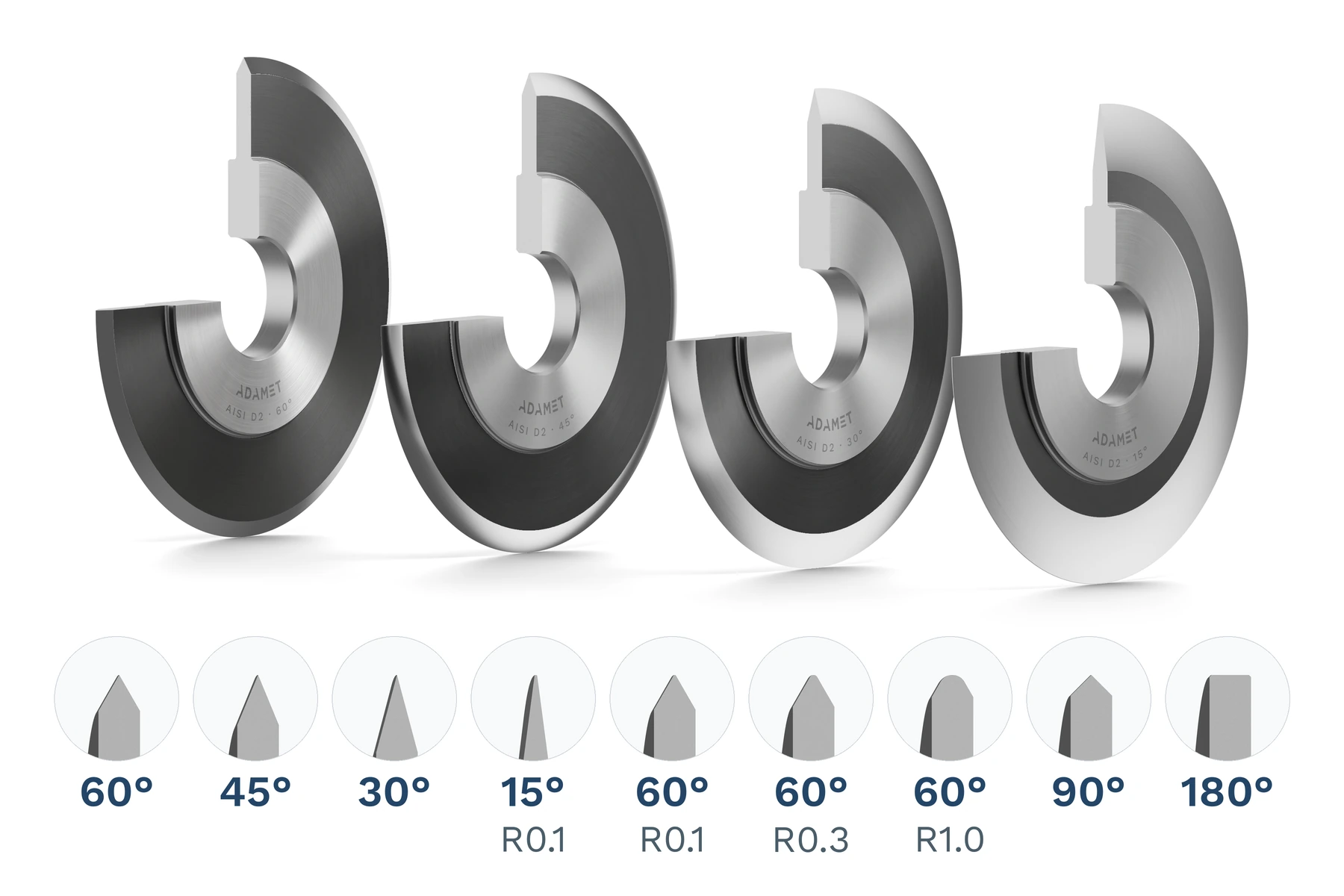

Crush Cutting Knives
Cuts against a hardened anvil roll. Also with a zigzag or wave edge.
Material: D2 (12% Cr), 1.2067, ASP 2023
Angles: 15–180°, standard 30°, 45° and 60°
Most common sizes, mm
77 × 19 × 6.35
77 × 19 × 5.2
77 × 22 × 6.2
50 × 19 × 6.35
50 × 19 × 5.2
100 × 19 × 6.35
Perforation Knives
Tooth pattern and perforation design to order.
Density: Max 72 TPI
Trim Cutting Knives
Edge trim cutting ring knives for corrugators and tissue lines, sizes per machine model or sample.
Machines: Agnati, BHS, Fosber, Marquip, Mitsubishi
Materials: HSS, powder steel, carbide
Feature: Coated carbide
Contact us
or scan with your phone
Compatibility
We supply knives for machines from manufacturers including:
AGNATI
ANDRITZ
ATLAS
BELOIT
BELOIT-LENOX
BHS
BIELOMATIK
FOSBER
GOSS
HOBEMA
JAGENBERG
KAMPF
MARQUIP
MASSON SCOTT
METSO
MITSUBISHI
PASABAN
ROLLTEC
STRACHAN HENSHAW
TIDLAND
VALMET
VOITH
WILL
